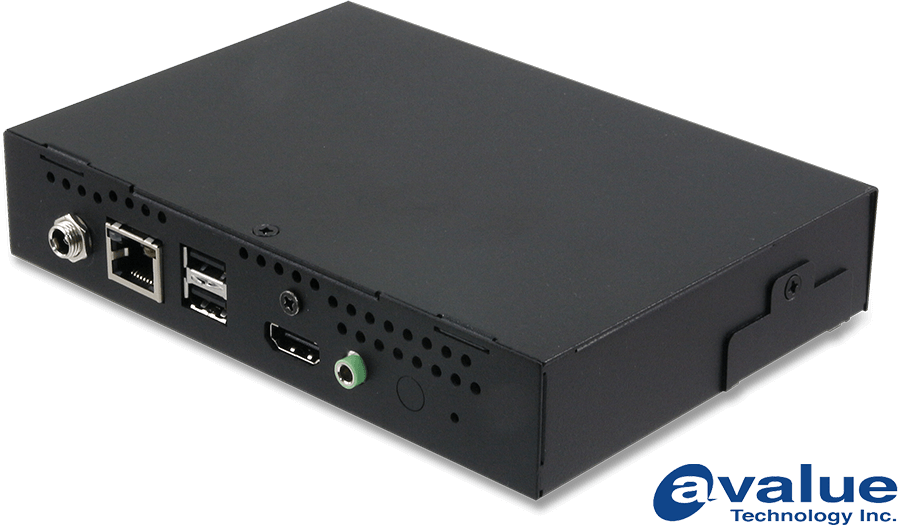

AIB-IMX6LB-A1R-00

    ID
    12039528
    Manufacturer
    Avalue
    Architecture
    ARM
    CPU
    i.MX6 DualLite A9
    Operating temp. (low to high)
    -20 °C to 70 °C
    LVDS
    up to 1
    HDMI
    up to 1
    mSATA socket
    1
    Expansions -PCIe socket
    1
    mPCIe socket
    1
    Ethernet
    up to 1
    CAN
    up to 1
    USB-OTG
    up to 1
    RS232
    up to 1
    RS422
    up to 1
    RS485
    up to 1
    Outline dimensions (H→ x V↑ x D   )
    15.3 x 107.8 x 3.0 mm
    Memory (on board)
    1 GByte DDR3 onboard
    Mass storage
    8 GB eMMC
    Power input
    12
    Weight
    1.55Kg
    Mounting
    Wall Mount
    SIM-socket
    YES
    Windows 7 support
    NO
    Windows 10 support
    YES
    AIB-IMX6_1931395347 (204.61 KB)
