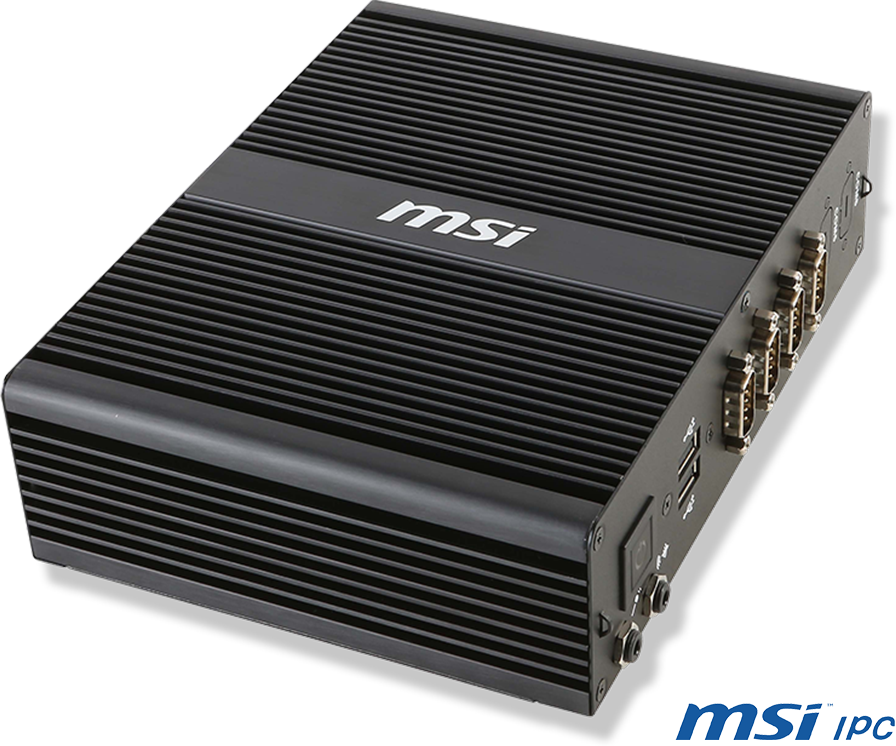

Technical Details ID 12019362 Manufacturer MSI Architecture x86 CPU Celeron J1900 Operating temp. (low to high) -10 °C to 55 °C LVDS up to 2 eDP up to 1 HDMI up to 2 DP up to 2 M.2 socket key E 1 M.2 socket key M 1 mSATA socket 1 Expansions -PCIe socket 1 Expansions -mPCIe socket (half s 1 mPCIe socket 1 Ethernet up to 2 RS232 up to 6 RS422 up to 2 RS485 up to 2 Outline dimensions (H→ x V↑ x D ) 20.0 x 15.0 x 5.5 mm Chipset io hub integrated Memory (on board) max. 8 GByte DDR3L Mass storage 12V-24V Power input 24 Weight 1.38Kg Mounting Wall+VESA Mount SIM-socket YES Windows 7 support YES Windows 10 support YES Downloads MS-9A69_ds (467.58 KB) 9A69B1v1.0_Baytrail (2.5 MB) Accessories & Services Accessories Memory (on board)HDD/SSDMounting solutionsExpansion modules Services Operating system supportCustomized adaptions Add to Compare ListRequest info/quote Request info/quote × For this product you can select following accessories and services: Accessories Memory (on board) HDD/SSD Mounting solutions Expansion modules Services Operating system support Customized adaptions Leave this field blank
