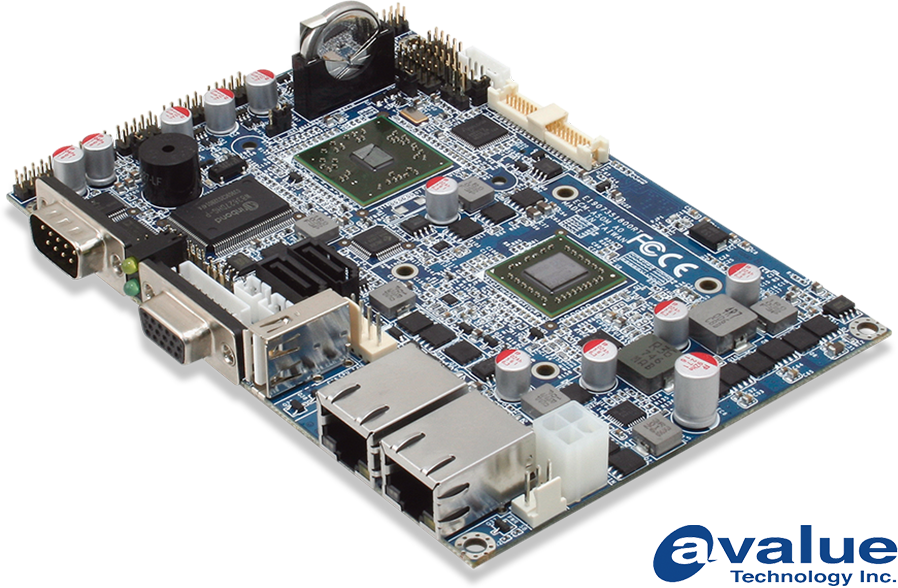

ECM-A50M-T40E

ID
CO70103
Manufacturer
Avalue
Product type
SBC
Formfactor
3,5 Zoll
Architecture
x86
CPU
T40E 1.0 GHz
Chipset io hub
A50M
Memory (on board)
max. 4 GByte DDR3
Flash
Not applicable
Operating temp. (low to high)
0 °C to 60 °C
HDMI
up to 1
LVDS
up to 1
Ethernet
up to 2
USB 2.0
up to 7
RS232
up to 2
RS422
up to 2
RS485
up to 2
Outline dimensions (H→ x V↑)
101.0 x 146.0 mm
ECM-A50M_ds (160.43 KB) DMO_ECM-A50M_2nd_manual (3.13 MB)
Accessories
  • Cooling solutions
  • Cables
  • Memory (on board)
  • HDD/SSD
  • Expansion modules
  • Carrier boards and baseboards
Services
  • Operating system support
  • Embedded computing design
Add to Compare List
Request info/quote
CPU Boards ECM-A50M-T40E
