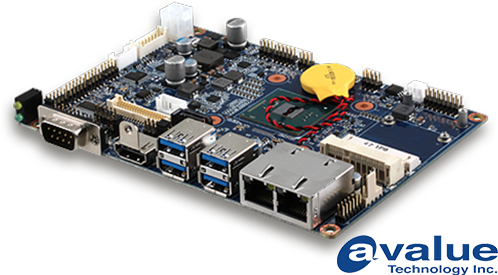

ECM-BSW

ID
12016934
Manufacturer
Avalue
Product type
SBC
Formfactor
3,5 Zoll
Architecture
x86
CPU
Celeron N3160
Chipset io hub
integrated
Memory (on board)
max. 8 GByte DDR3L
Flash
Not applicable
Operating temp. (low to high)
0 °C to 60 °C
HDMI
up to 1
LVDS
up to 2
DP
up to 2
Ethernet
up to 2
USB 2.0
up to 2
USB 3.0/3.1
up to 4
RS232
up to 1
RS422
up to 1
RS485
up to 1
Outline dimensions (H→ x V↑)
101.0 x 146.0 mm
ECM-BSW_ds (145.25 KB) ECM-BSW 1st Manual (2.27 MB) DDR3L SO-DIMM BASED ON 2GB_V1 2 (508.61 KB) DDR3L SO-DIMM BASED ON 2GB_V1 2 (508.61 KB)
Accessories
  • Cooling solutions
  • Cables
  • Memory (on board)
  • HDD/SSD
  • Expansion modules
  • Carrier boards and baseboards
