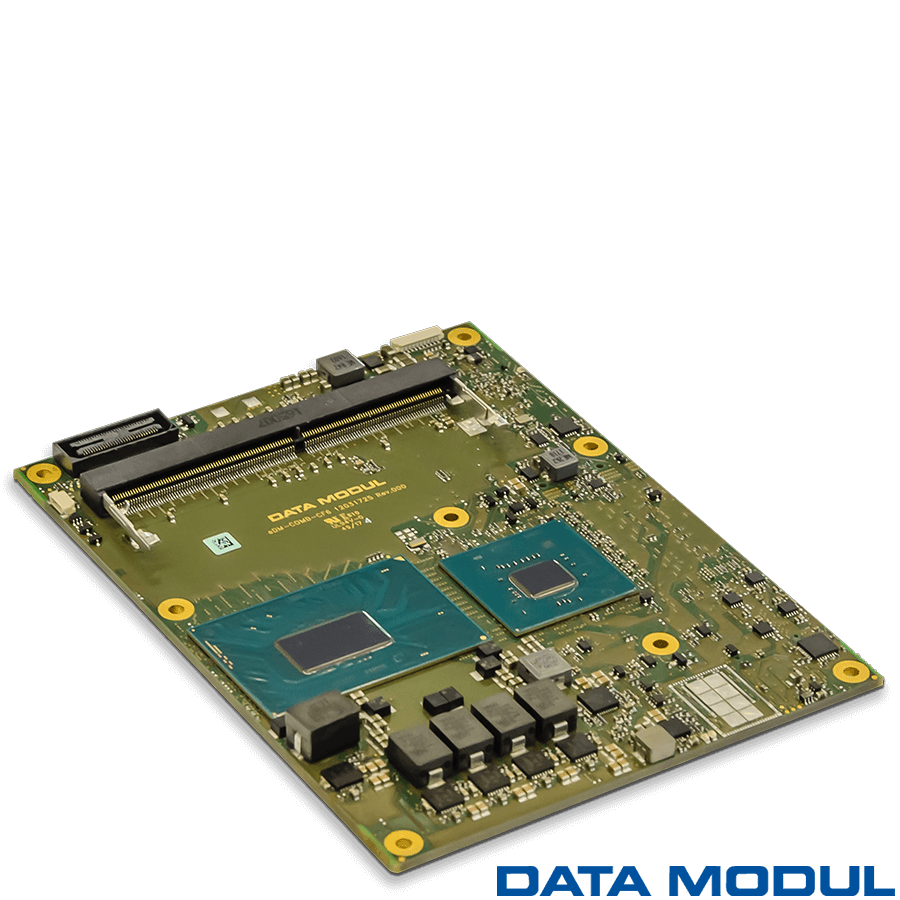

eDM-COMB-CR6

ID
12044504
Manufacturer
Data Modul
Product type
COM
Formfactor
COM Express
Architecture
x86
CPU
Intel Xeon E-2276ME
Chipset io hub
300 Series
Memory (on board)
max. 32 GByte DDR4
Flash
Not applicable
Operating temp. (low to high)
-40 °C to 85 °C
eDP
up to 1
HDMI
up to 2
LVDS
up to 1
DP
up to 2
Ethernet
up to 1
USB 2.0
up to 8
USB 3.0/3.1
up to 4
USB type C
up to 2
USB-OTG
up to 1
Outline dimensions (H→ x V↑)
95.0 x 125.0 mm
Datenblatt_eDM-COMB-CR6 (411.34 KB) User-Manual_eDM-COMB-CR6 (6.96 MB)
Accessories
  • Cooling solutions
  • Cables
  • Memory (on board)
  • HDD/SSD
  • Expansion modules
  • Carrier boards and baseboards
