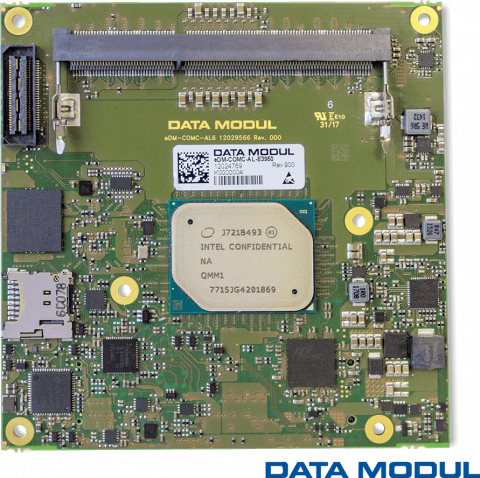

eDM-COMC-AL6

ID
12031857
Manufacturer
Data Modul
Operating Temp.
-40 °C to 85 °C
Display Interfaces
2 x DDI (DP++, HDMI, DVI), LVDS 2x24/eDP, 1 x VGA (opt.)
Outline Dimensions
95 mm x 95 mm
Product Type
Computer-On-Module
Processor Architecture
x86
CPU
Intel Atom® E3900, Pentium® and Celeron® Series
CPU Type Plattform
Intel® Apollo Lake
Memory
max. 8 GByte DDR3L
Ethernet
Gigabit LAN
Graphics
Integrated
Power Supply
+12V DC
Power Consumption
< 15 W
Formfactor
COM Express
Additional Features
Window Watchdog, TPM 1.2/2.0 DMEC Board Controller
Chipset IO Hub
integrated
Datasheet_eDM-COMC-AL6 (1.18 MB) 12038083-Rev00 (4.54 MB) 12047286_DM3S4G18AB2-SEMAY (4.54 MB)
Accessories
  • Cooling solutions
  • Cables
  • Memory
  • HDD/SSD
  • Expansion modules
  • Carrier boards and baseboards
Services
  • Operating system support
  • Embedded computing design
Add to Compare List
Request info/quote
CPU Boards eDM-COMC-AL6
