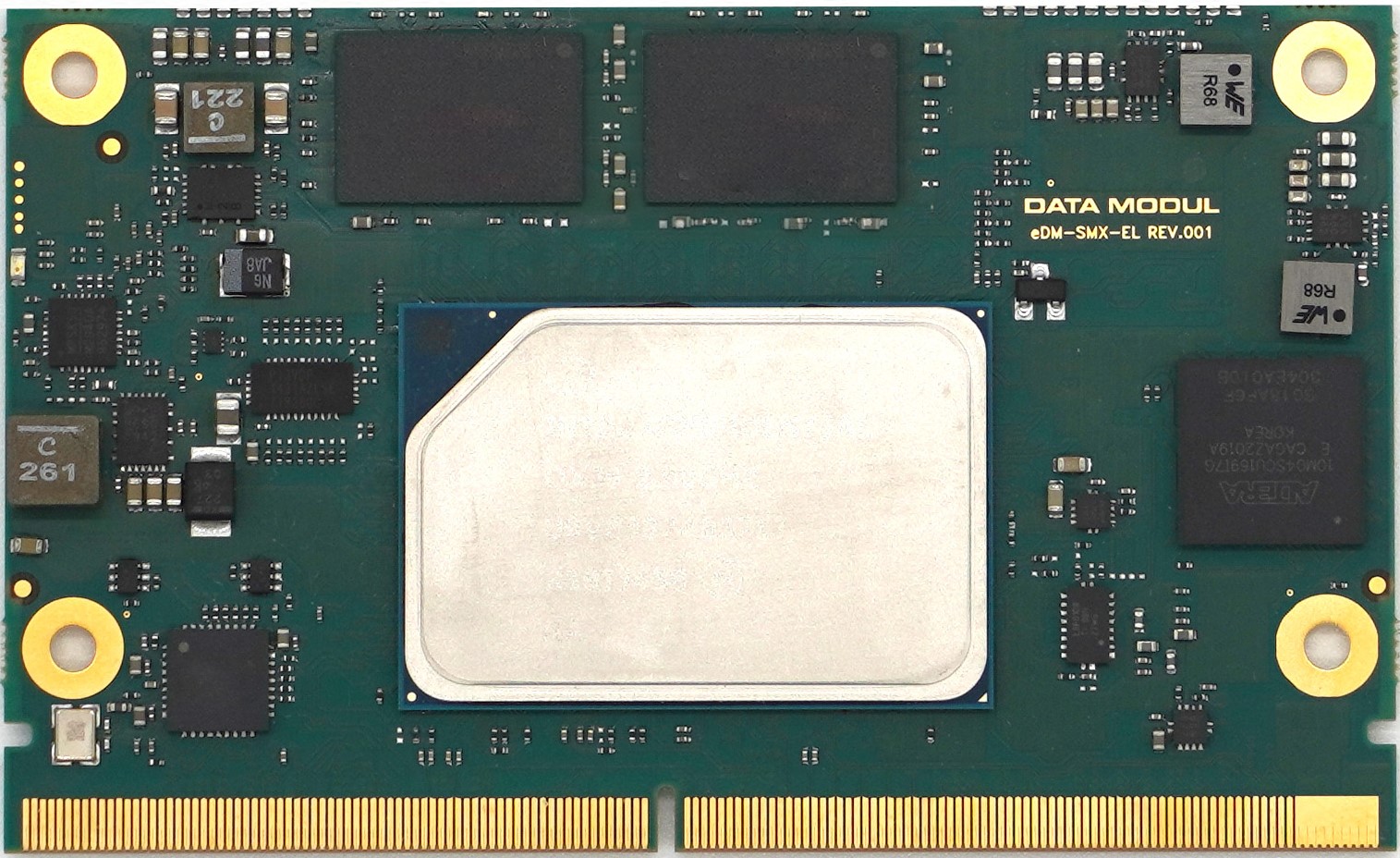

eDM-SMX-EL

ID
12049003
Manufacturer
Data Modul
Operating Temp.
-40 °C to 85 °C
Display Interfaces
1x LVDS dual channel up to 1920x1200 @60Hz 2x DP++ / Digital Display Interface (DDI) up to 4kp60
Outline Dimensions
82 x 50 mm
Product Type
Computer-On-Module
Processor Architecture
x86
CPU
Intel® Atom® x6000E, Celeron® and Pentium® Series
CPU Type Plattform
Intel® Elkhart Lake
Memory
up to 16 Gbyte LPDDR4X with max. 4267 MT/s and Inband ECC support
Ethernet
up to 2x GbE with TSN support
I/O Interfaces
2x USB 3.1 Gen2, 4x USB 2.0, 1x SATA Gen3 (6 Gb/s) Up to 4x PCIe Gen3 (configurable as 4 x1, 2 x2 or 1 x4)
Graphics
Intel® UHD Gfx Gen 11LP
Operating Systems
Microsoft® Windows 10, Winows 10 IoT, Linux, Yocto
Power Supply
5V only
Power Consumption
< 15 W
Formfactor
SMARC
Additional Features
Window Watchdog, TPM 2.0 DMEC Board Controller, Automatic BIOS recovery
Chipset IO Hub
n/a
EDM-SMX-EL_Datasheet_V4 (449.41 KB)
Accessories
  • Cooling solutions
  • Cables
  • Memory
  • HDD/SSD
  • Expansion modules
  • Carrier boards and baseboards
Services
  • Operating system support
  • Embedded computing design
