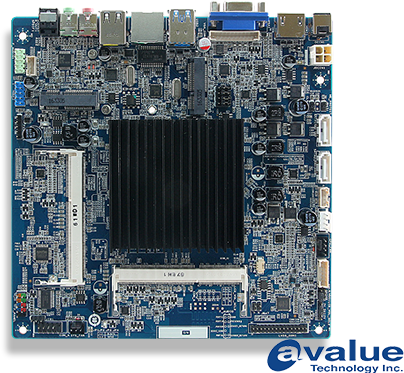

EMX-BSWP

ID
12017849
Manufacturer
Avalue
Product type
Motherboard
Formfactor
Mini-ITX
Architecture
x86
CPU
Celeron N3160
Chipset io hub
integrated
Memory (on board)
max. 8 GByte DDR3L
Flash
32 GB eMMC
Operating temp. (low to high)
0 °C to 60 °C
HDMI
up to 1
LVDS
up to 1
USB 2.0
up to 4
USB 3.0/3.1
up to 4
RS232
up to 3
RS422
up to 3
RS485
up to 3
Outline dimensions (H→ x V↑)
170.0 x 170.0 mm
EMX-BSWP_17330123023 (168 KB) EMX-BSWP 4th Manual (3.52 MB) DDR3L SO-DIMM BASED ON 2GB_V1 2 (508.61 KB) DDR3L SO-DIMM BASED ON 2GB_V1 2 (508.61 KB)
