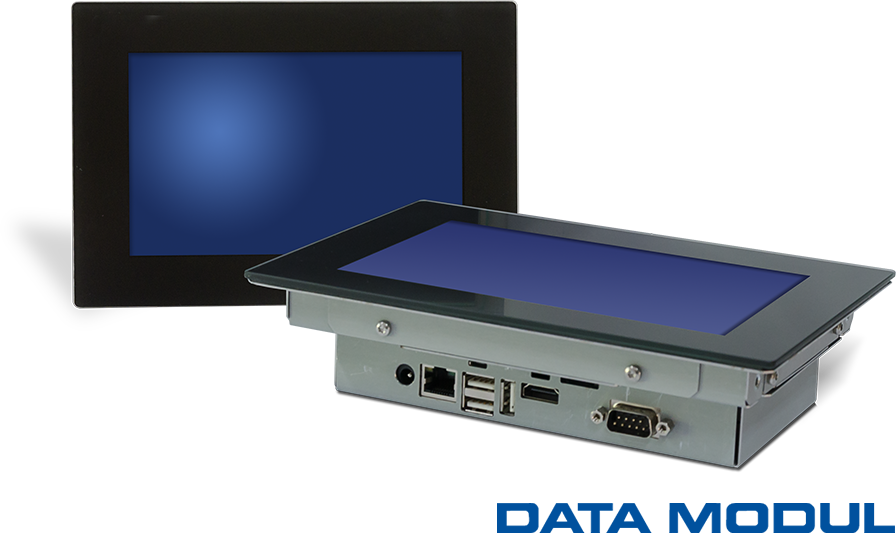

EP101WARM131-PCAP-DM

    ID
    12015100
    Manufacturer
    Data Modul
    Size
    10.10 inch
    Resolution
    1280 x 800 Pixel
    Brightness
    400 cd/m²
    Viewing Angle
    80/80/60/70
    Operating Temp.
    0 °C to 60 °C
    Aspect Ratio
    16:10
    Touch Technology
    PCAP
    Processor Architecture
    ARM
    Housing
    Open Frame / Chassis
    CPU
    NVIDIA Tegra 2
    CPU Type
    ARM Cortex A9
    Memory
    512 MByte
    Storage
    512 MByte
    Operating Systems
    WIN EC 7
    Power Supply
    12Vdc / 24Vdc
    Backlight Lifetime
    50k hours
    Coverglas
    anti-glare
    Fanless
    yes
    Ethernet Interface
    Yes
    USB Interface
    Yes
    RS232 Interface
    Yes
    Accessories
    • Cables
    • Power supply
    • Mounting solutions
    Services
    • Certification support
    • Operating system and software support
    • OEM solutions and customized adaptions
