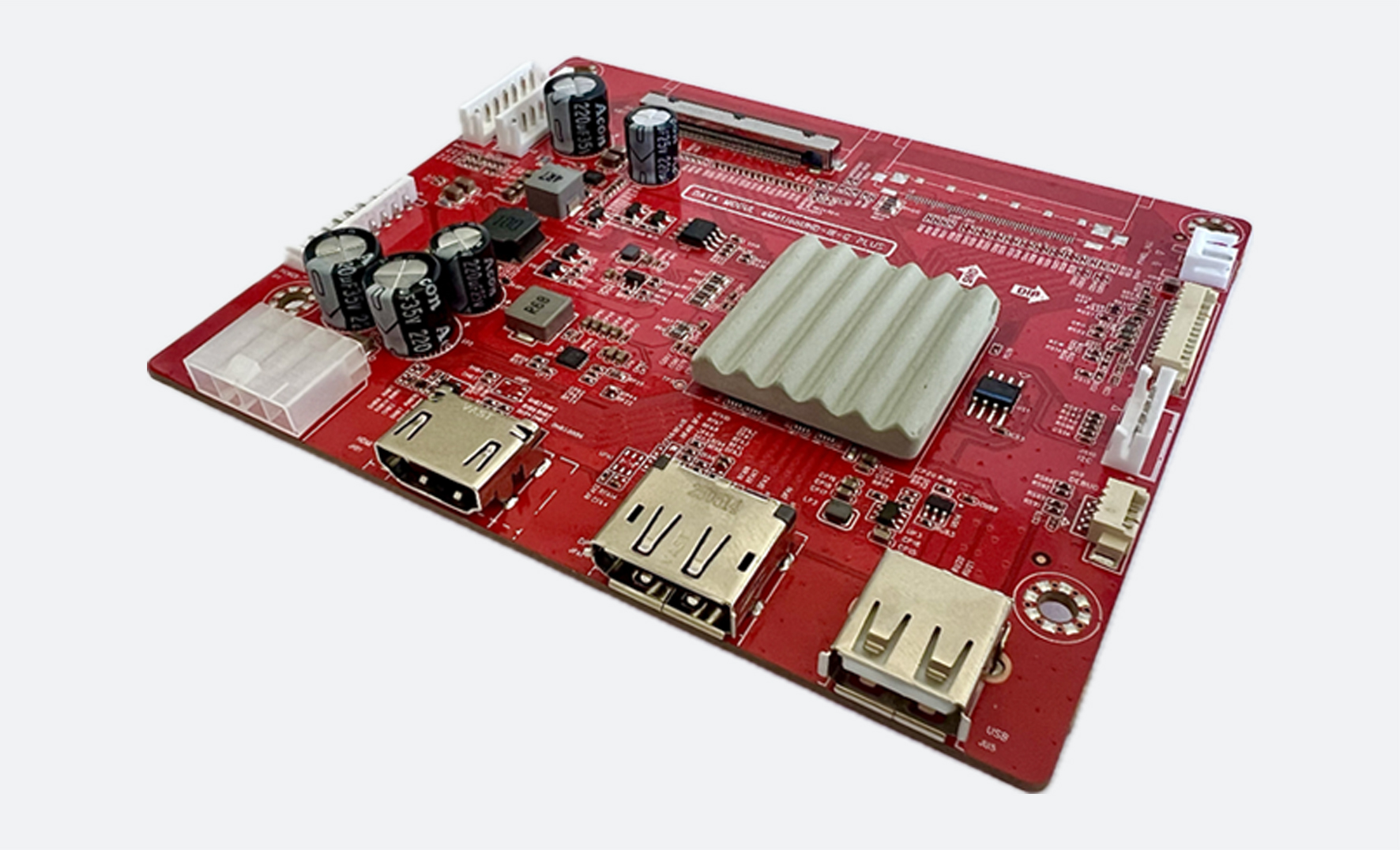

DATA MODUL presents latest generation of eMotion UHD-III-G scaler boards

The scaler boards are available in two different basic versions:

• eMotion UHD-III-G is the smaller model, measuring 96x96x14mm³
• eMotion UHD-III-G Plus is the full-size version, measuring 120x100x14mm³

Thanks to the latest Mediatek Scaler SOCs from the MT9800 series, the eMotion UHD-III-G family supports a wide range of display interfaces: LVDS, eDP, and V-by-One. A particular highlight of the eMotion UHD-III-G Plus board is the option of lossless 180° full-screen rotation at 60 Hz in full 4K resolution –ideal for dynamic, high-resolution content.

The boards can be controlled either via an OSD board with five buttons, UART, or DDC/CI. The boards also offers HDR10 support, a very compact design, and the option of flexible firmware programming, which allows easy adaptation to customer-specific applications.

Technical highlights at a glance

• High-performance graphics scaler boards for 4K UHD resolution
• Mediatek MT9800 LCD controller SOC
• Graphics inputs: HDMI 2.1 and DisplayPort 1.4
• Graphics outputs: LVDS, eDP (HBR), V-by-One (depending on SKU)
• 4K resolution at 60 Hz including 180° image rotation
  HDR10 support and 12-bit gamma correction for brilliant image quality DDC/CI and UART remote control as well as OSD board with 5 buttons
• Compact design for easy monitor integration
• Firmware update via HDMI port or USB
• Long-term availability

As a leading full-service provider, we supply complete, ready-to-use display kits consisting of a display panel, scaler board, and cable set, enabling quick and easy integration into individual end devices. Typical areas of application for eMotion UHD-III-G boards include casino gaming systems, digital signage solutions, and other applications with large-format 4K displays.

Interested?
Don't hesitate to contact your DATA MODUL sales partner for more information!
